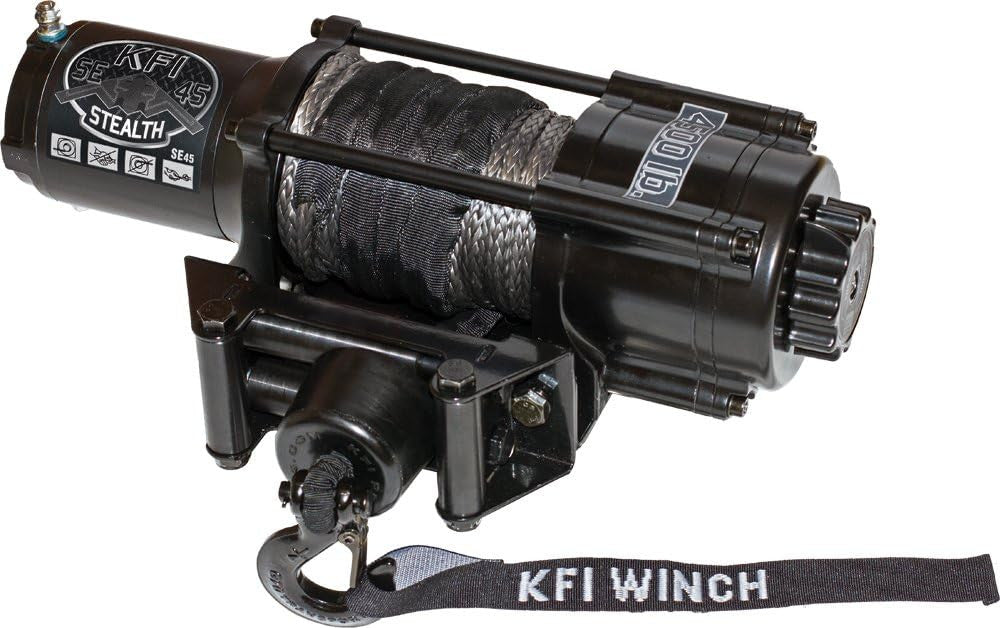

KFI 4,500LB Wide Spool Stealth Series Winch (SE45w-R2) / Synthetic Cable

KFI 4,500LB Wide Spool Stealth Series Winch (SE45w-R2) / Synthetic Cable

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 4500lb UTV Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic, mechanical, and drum braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI 1-Year Limited Warranty. The KFI SE45 Stealth Winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

52' Synthetic Cable with 5' protective sheath and end loop

Also included is a Handheld 14' Corded
Remote for those situations when you need
to control your winch from a distance or
dismounted from your machine. This compact
high quality remote offers a more reliable
control than the other wireless options.
Included is a socket plug and play wiring
system so that you can store your remote
when not in use.

Take control of your winch with the included
UTV Dash Rocker Switch. It comes with the switch
and the wireing harness with plug for easy install.
The dash rocker also comes with a blue led light inside
to light up your dash at night. This rocker switch allows you
to control your winch with just the touch of your finger,
never having to let go of your steering wheel.

The included Heavy Duty Electric Contactor
protects your ATV's electrical system and
switches the power distribution of your winch
that is controlled from your switches.

The included Cable Hook Stopper
with the following benefits:

- Eliminates wear and tear on your rollers from the hook with can cause cable wear.
- Eliminates hook clatter from going down the trail.
- Protects the winch motor and gears from pulling the cable in to far and bottoming out on the rollers.
- Keeps tension on the hook to eliminate the cable becoming loose.
- Also has slits designed in it to work as an anti-kick back for the cable if your cable was to snap.
- Looks great.
- Once you have one, everyone else that you ride, with will want one :)

Specifications:

Suggested Retail: $432.95

Model: SE45w-R2 UTV Series
Rated Line Pull: 4500 lbs.
Motor: 12V DC, 1.7 hp Permanent Magnet
Gear Ratio: 166:1
Gear/Transmission: All-metal Planetary Gear Drive
Brake: Dynamic and Mechanical
Clutch (free spooling): All Metal Cam Activated Freespool
Drum Size: 2.0" (D) x 4.92" (L)
Synthetic Cable: 15/64" (D) x 52' (L) Smoke color
Fairlead: Multi-directional Roller
Control: Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch
Winch Dimensions: 16.3" L x 4.55" D x 4.82" H
Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
Mounting Bolt Pattern: 3.00" x 6.60" (4-Hole)
Recommended Battery : 12 Amp/hour minimum
Warranty: Limited 1 Year
Winch Weight: 34.85 lbs. (complete kit)
